AF-X Fireblocker Nano Series

AF-X Fireblocker - Environmentally friendly fire extinguishing system

AF-X Fireblocker nano series

The AF-X Fireblocker is been powered by APP of ArianeGroup, a joint Venture of Airbus & Safran, an aerospace company and a world leader in access to space.

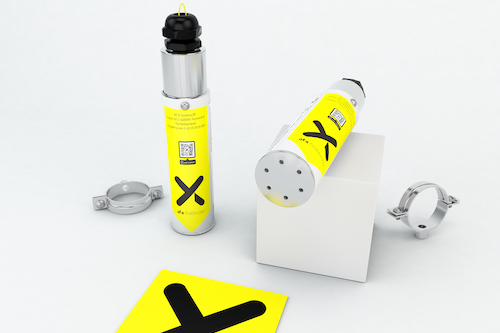

NANO CXXS

• Gross Weight: 0.4 kg
• Extinguishing Agent Weight: 30 g
• Discharge Time: <20 sec
• Max Installation Height: 1.5 m
• Protection Volume: 0.4 m³
• Dimensions: 18 x 3.8 cm
• Applications: Computer boxes, electrical cabinets, switch boxes, vehicles

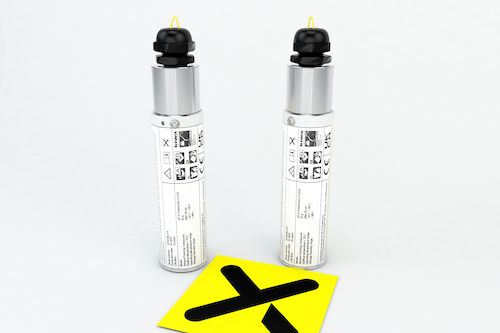

NANO CXS

• Gross Weight: 0.5 kg
• Extinguishing Agent Weight: 60 g
• Discharge Time: <40 sec
• Max Installation Height: 2.0 m
• Protection Volume: 0.8 m³
• Dimensions: 18 x 3.8 cm
• Applications: Computer boxes, electrical cabinets, switch boxes, vehicles

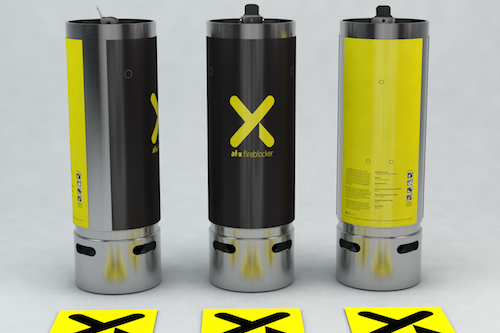

NANO CS

• Gross Weight: 2.5 kg
• Extinguishing Agent Weight: 150 g
• Discharge Time: <30 sec
• Max Installation Height: 1.5 m
• Protection Volume: 2.6 m³
• Dimensions: 31 x 9.4 cm
• Applications: Computer boxes, electrical cabinets, switch boxes, vehicles

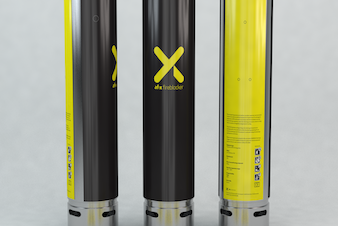

NANO CM

• Gross Weight: 3.5 kg
• Extinguishing Agent Weight: 450 g
• Discharge Time: <60 sec
• Max Installation Height: 1.5 m
• Protection Volume: 7.2 m³
• Dimensions: 45 x 9.4 cm
• Applications: Engine compartments, control units, cupboards

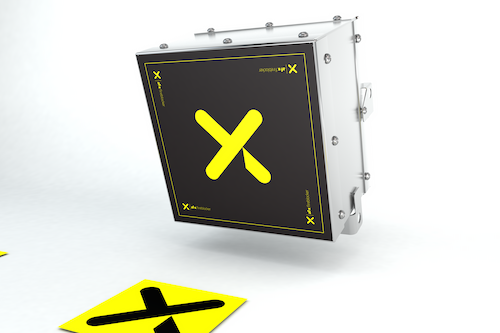

NANO BXS

• Gross Weight: 4.3 kg
• Extinguishing Agent Weight: 750 g
• Discharge Time: <60 sec
• Max Installation Height: 2.6 m
• Protection Volume: 9.2 m³
• Dimensions: 18.5 x 20 x 16 cm
• Applications: Central control rooms, computer rooms, engine rooms

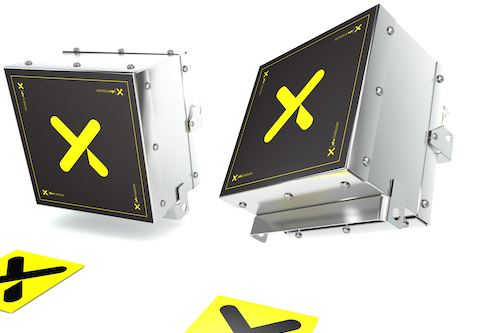

NANO BS

• Gross Weight: 4.6 kg
• Extinguishing Agent Weight: 1050 g
• Discharge Time: <60 sec
• Max Installation Height: 3.0 m
• Protection Volume: 13.3 m³
• Dimensions: 18.5 x 20 x 16 cm
• Applications: Central control rooms, computer rooms, engine rooms

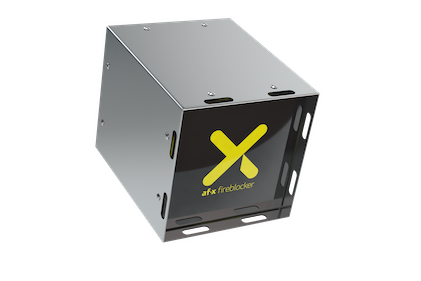

NANO BM

• Gross Weight: 21 kg
• Extinguishing Agent Weight: 2550 g
• Discharge Time: <40 sec
• Max Installation Height: 5.0 m
• Protection Volume: 42 m³
• Dimensions: 25 x 25 x 30.4 cm
• Applications: Storage, hazardous goods storage, archives

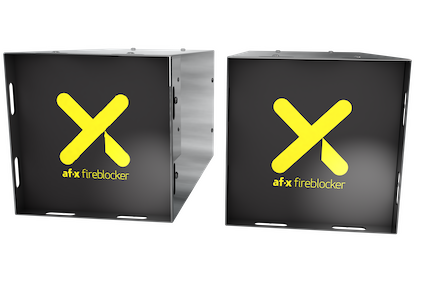

NANO BL

• Gross Weight: 19 kg
• Extinguishing Agent Weight: 3900 g
• Discharge Time: <60 sec
• Max Installation Height: 6.0 m
• Protection Volume: 72 m³
• Dimensions: 25 x 25 x 30.4 cm
• Applications: Storage, hazardous goods storage, archives

Do you want to become a distributor?

GET STARTED TODAY

Frequently Asked Questions:

  • Which models are available within the AF-X Fireblocker nano series?
    The AF-X Fireblocker nano series offers various models, including the NANO CXXS, CXS, CS, CM, BXS, BS, BM, and BL. Each model features specific characteristics such as different protection volume, gross weight, extinguishing agent weight, and discharge time. They are designed for diverse applications, from smaller spaces like computer cabinets, electrical cabinets, and vehicles to larger environments such as engine rooms, central control rooms, storage, and archives. This ensures a suitable solution for various fire protection needs.
  • How does the AF-X Fireblocker nano series differentiate itself from traditional extinguishing systems?
    The AF-X Fireblocker nano series distinguishes itself through innovative aerosol extinguishing technology, developed in collaboration with Aerospace Propulsion Products (APP) of ArianeGroup. These systems operate without water, gas, or pressurized cylinders, resulting in a compact and easy-to-install plug & play system. They provide fast and effective fire blocking, are environmentally friendly with zero ozone depletion potential, and have a negligible atmospheric lifespan. Furthermore, they offer a long service life of 15 years with minimal maintenance, contributing to low costs and maximum safety.
  • For what applications are the AF-X Fireblocker nano series systems certified?
    The AF-X Fireblocker nano series is fully certified for a wide range of critical applications, confirming its reliability and quality worldwide. These certifications guarantee that the products comply with international fire safety standards. This makes them suitable for sectors such as industry, IT & server rooms, energy storage systems (ESS and BESS) with lithium-ion batteries, maritime applications, wind turbines, and offshore environments. Companies can therefore rely on proven quality and compliance with applicable regulations.
  • Which fire protection solutions are suitable for small and sensitive electronic spaces?
    For small and sensitive electronic spaces, such as computer cabinets, electrical cabinets, and switch boxes, compact and residue-free fire protection solutions are crucial. Systems utilizing dry aerosol technology provide fast and effective fire blocking without water or gas, preventing damage to sensitive equipment. This technology is ideal as it requires no piping or external facilities, making installation easy even in confined spaces. This ensures safe and uninterrupted operation of critical systems.
  • What are the advantages of fire protection systems with a long lifespan and low maintenance?
    Fire protection systems with a long lifespan and minimal maintenance requirements offer significant operational and economic advantages. They reduce total ownership costs through less frequent replacements and maintenance work. This minimizes disruptions to business processes and maximizes the continuous availability of fire protection. Such systems guarantee reliable protection over an extended period, which is essential for businesses striving for maximum safety and efficiency without compromising reliability or environmental footprint.
